Town / VT09-C-SR009-ParkingGarage

Properties:

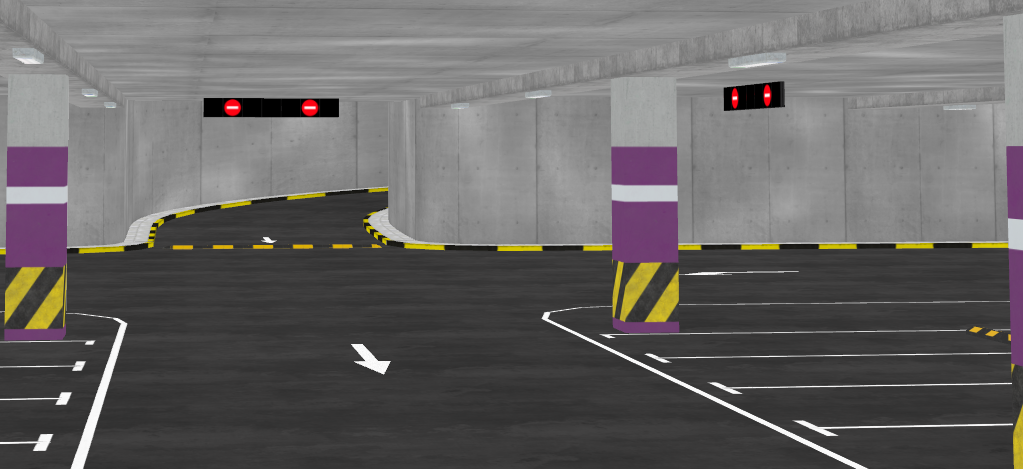

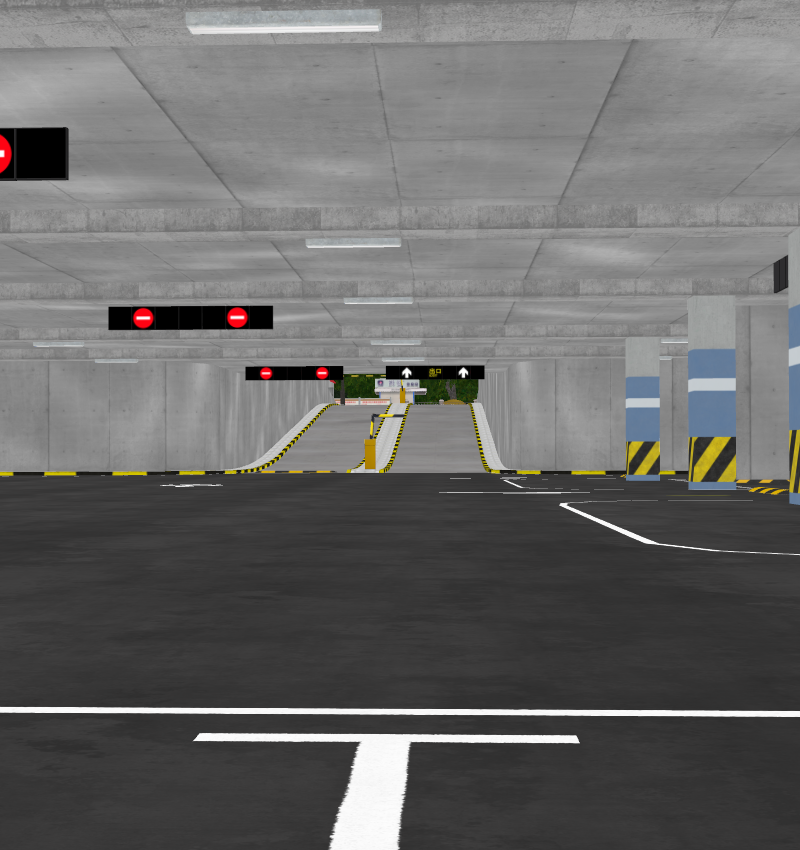

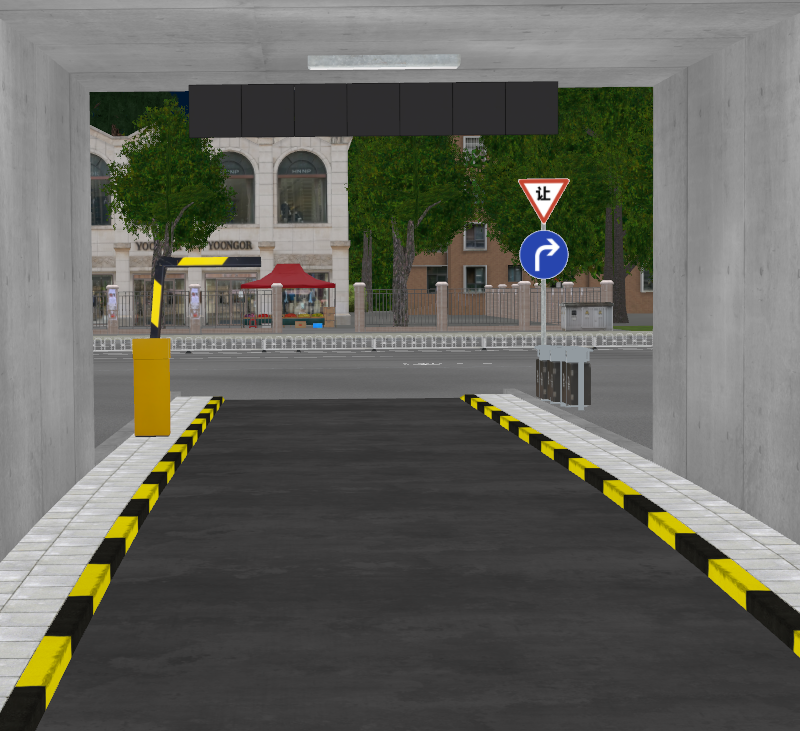

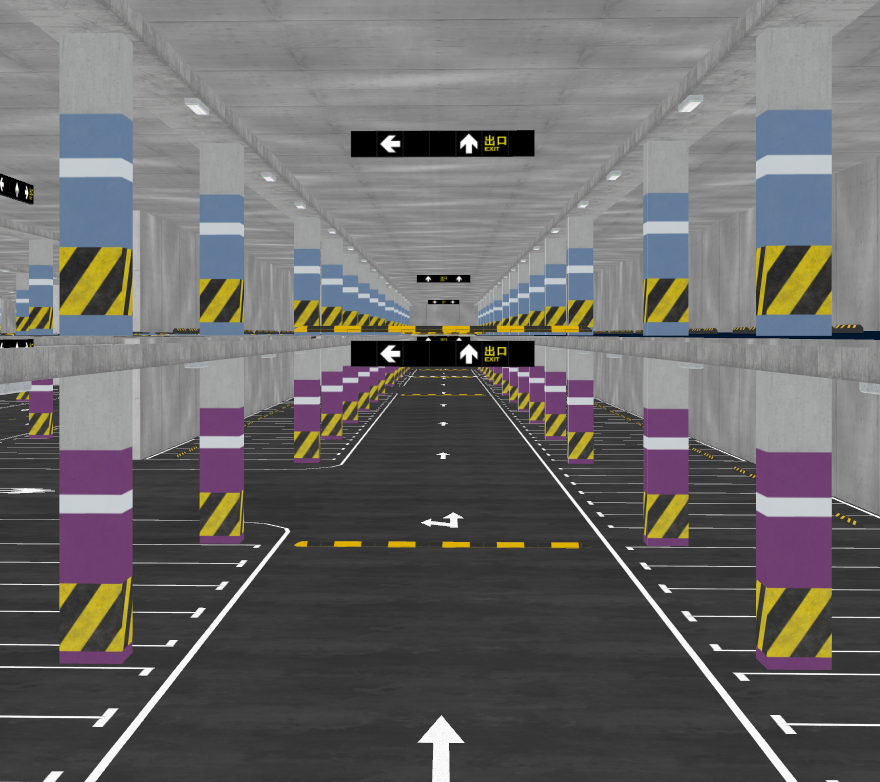

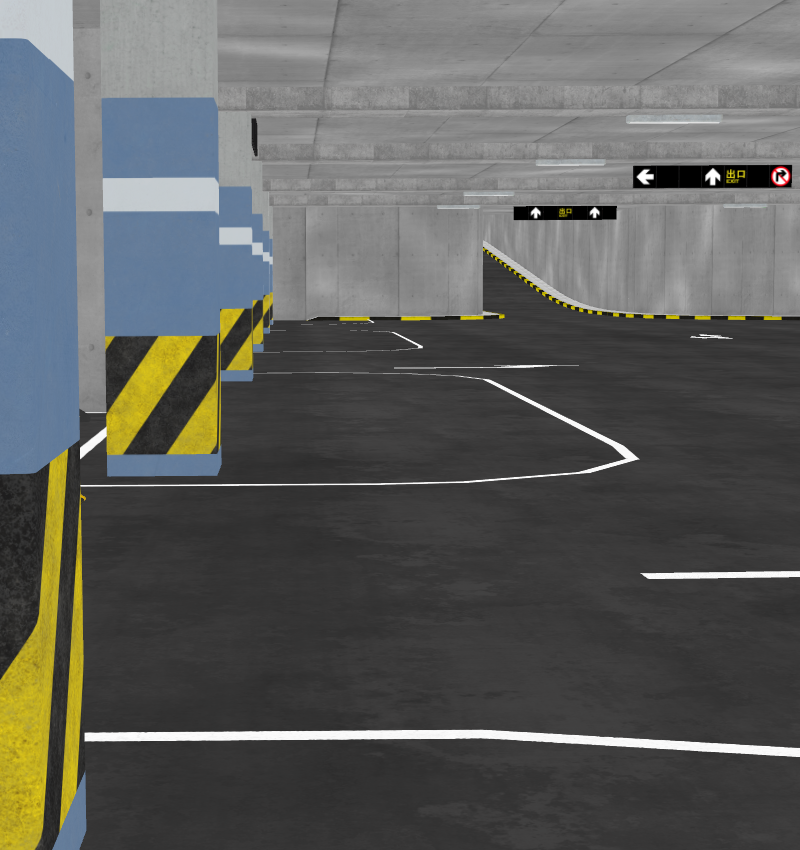

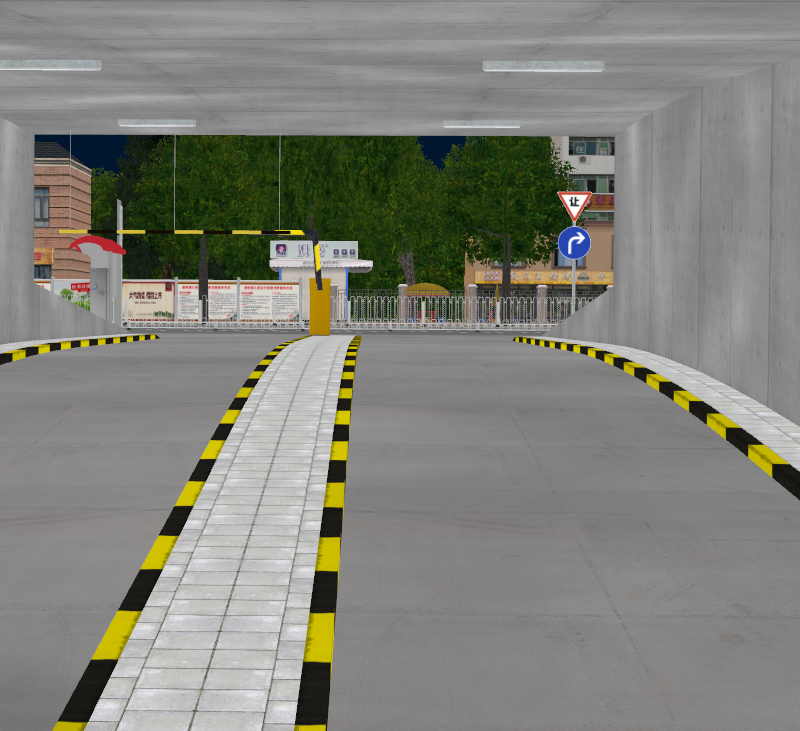

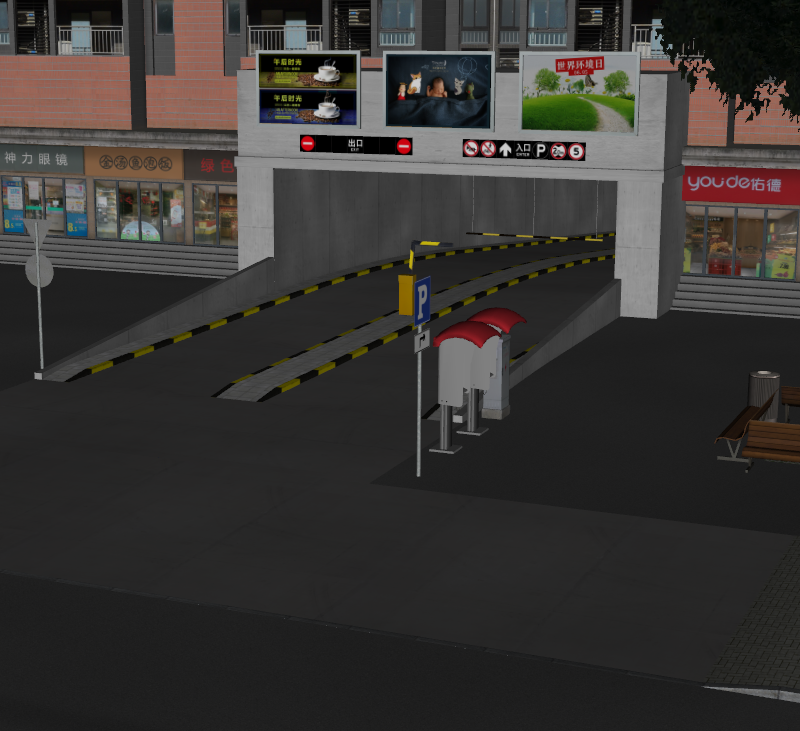

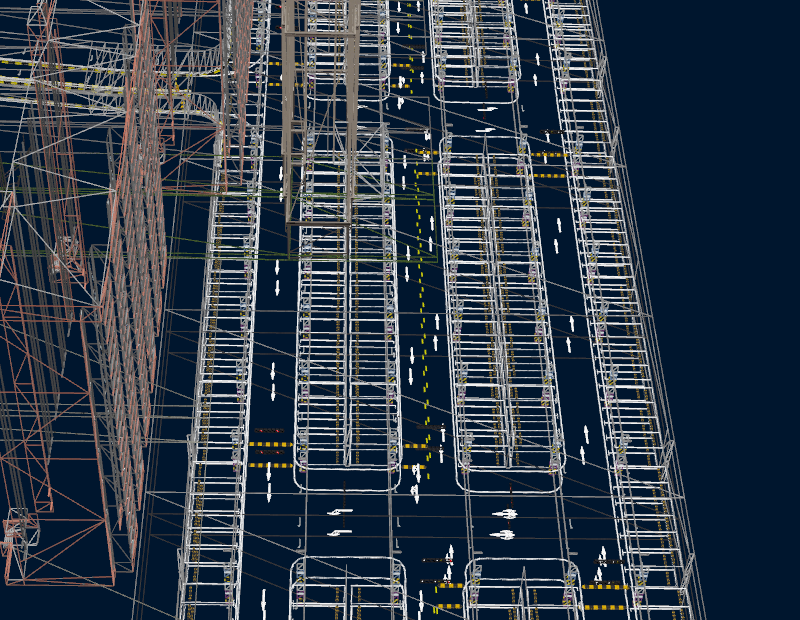

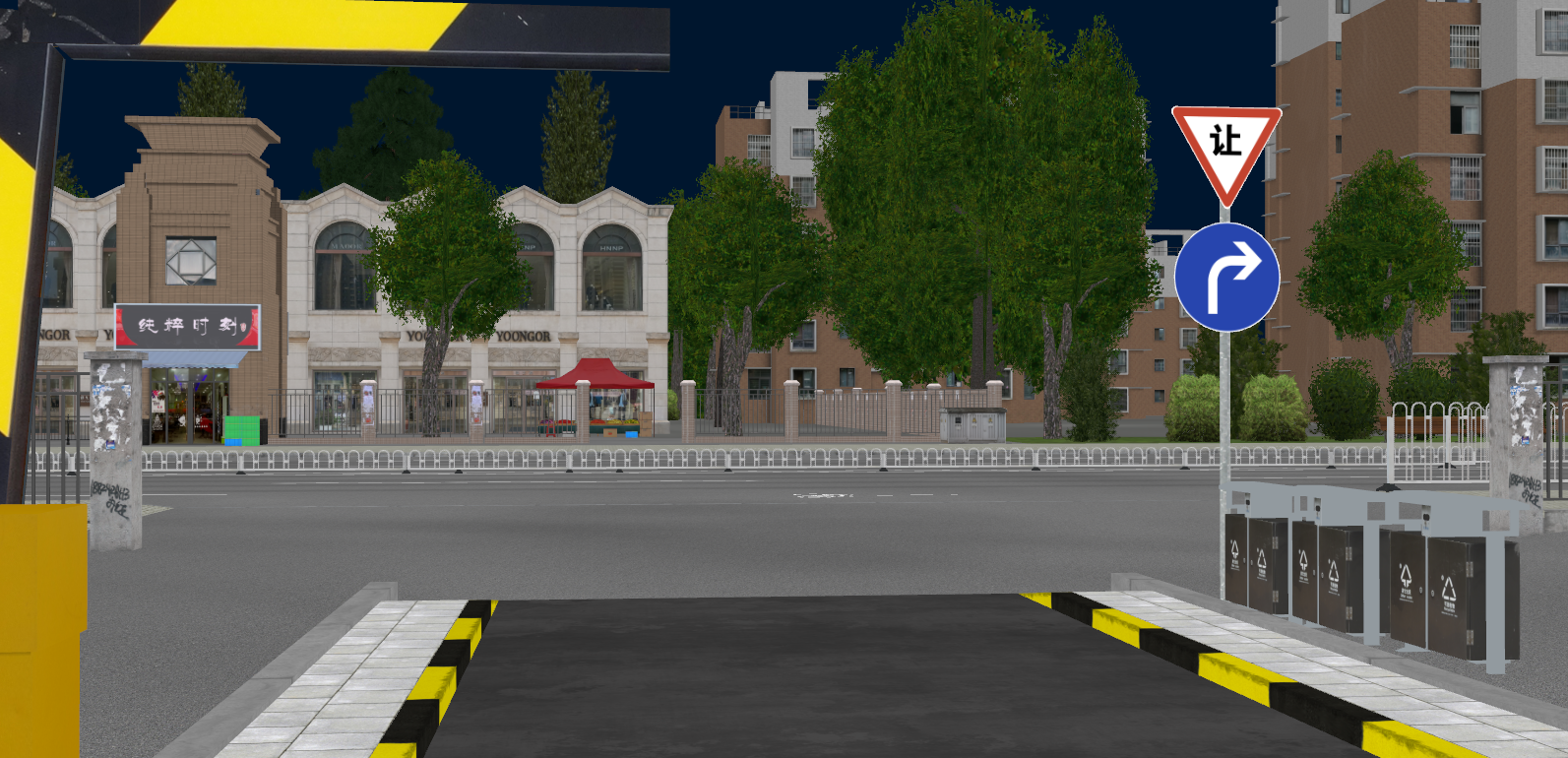

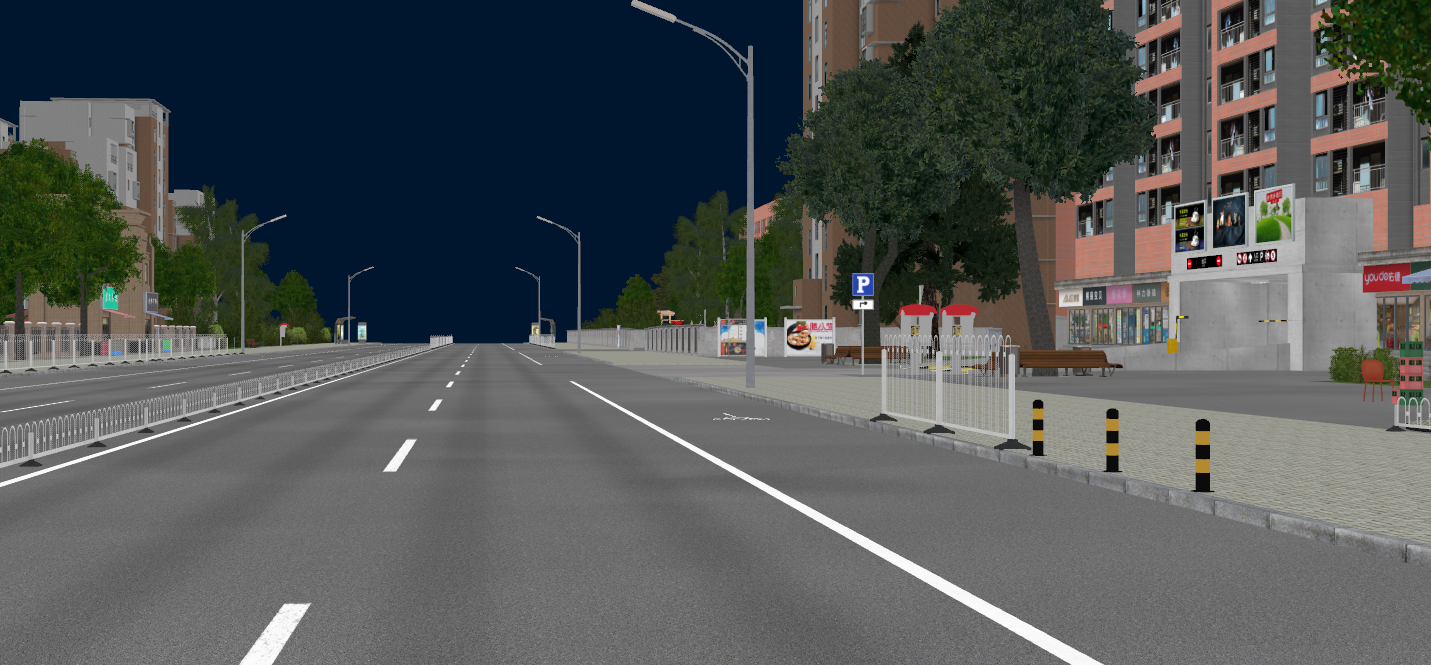

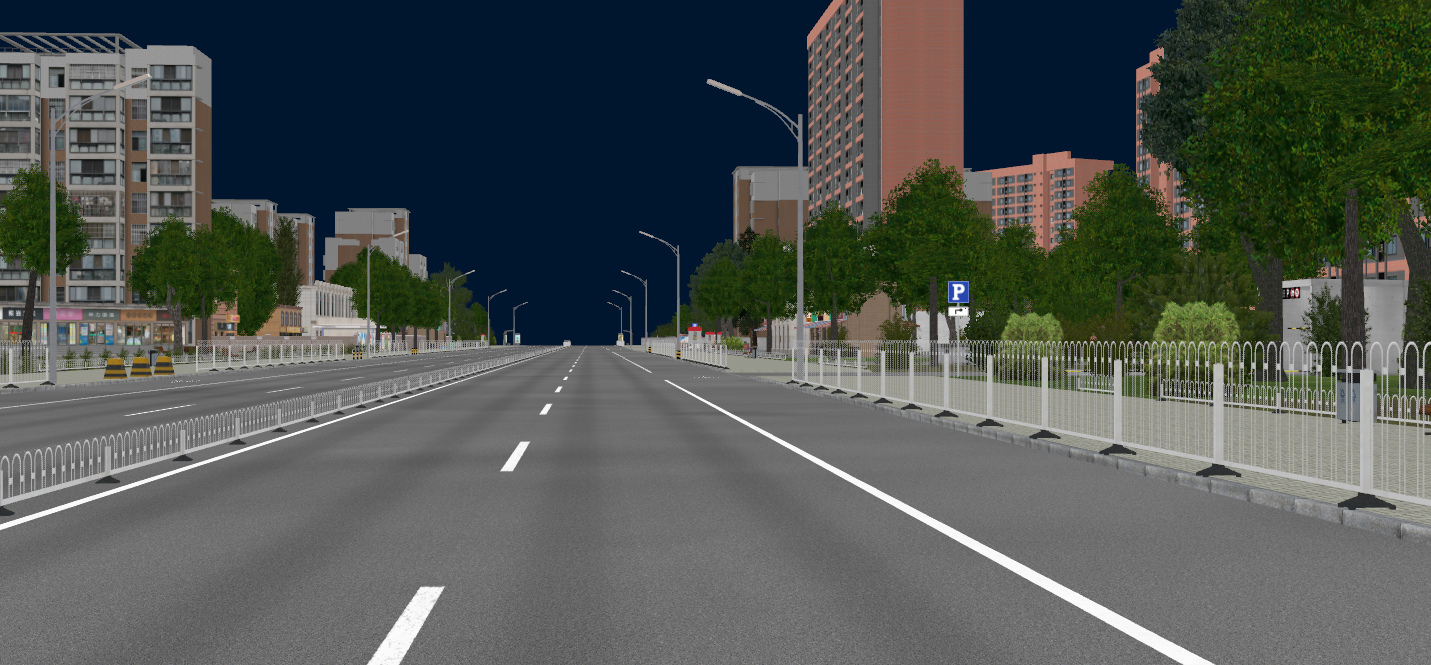

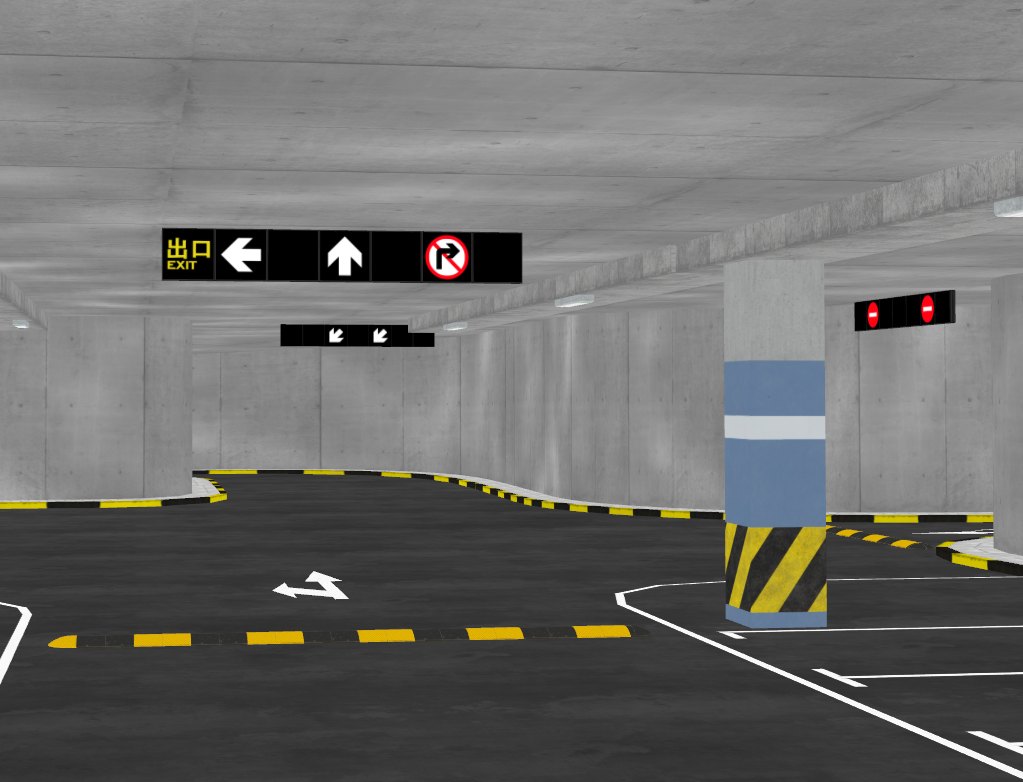

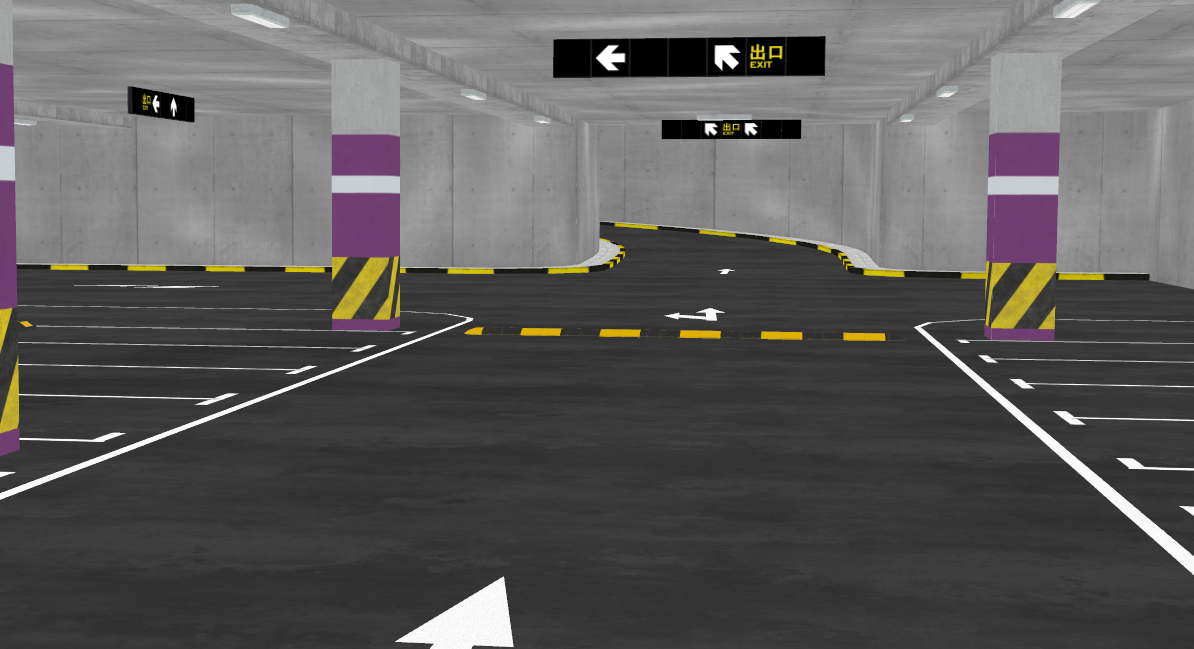

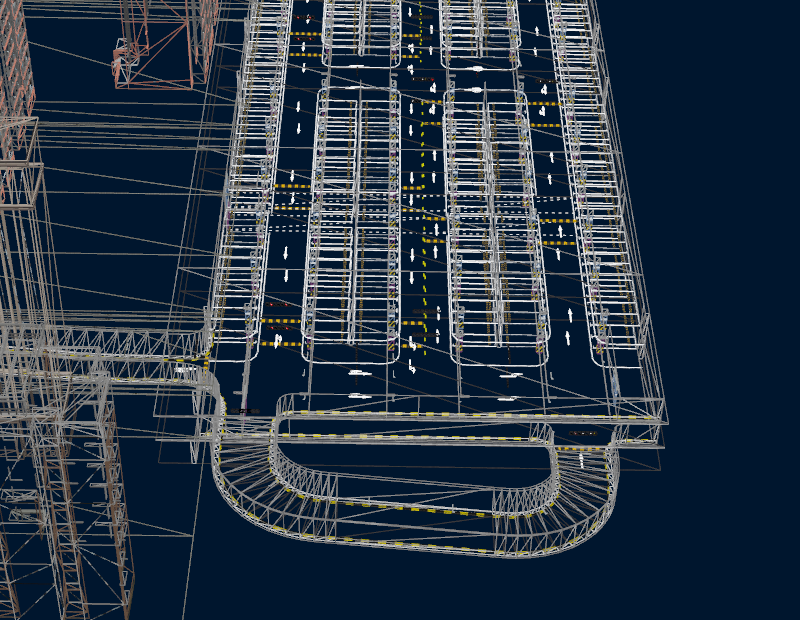

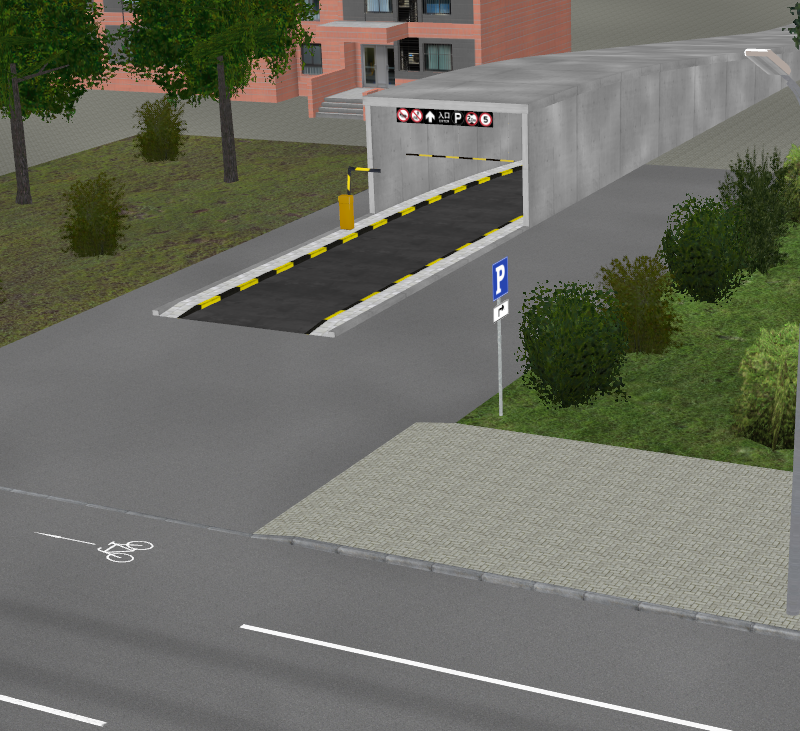

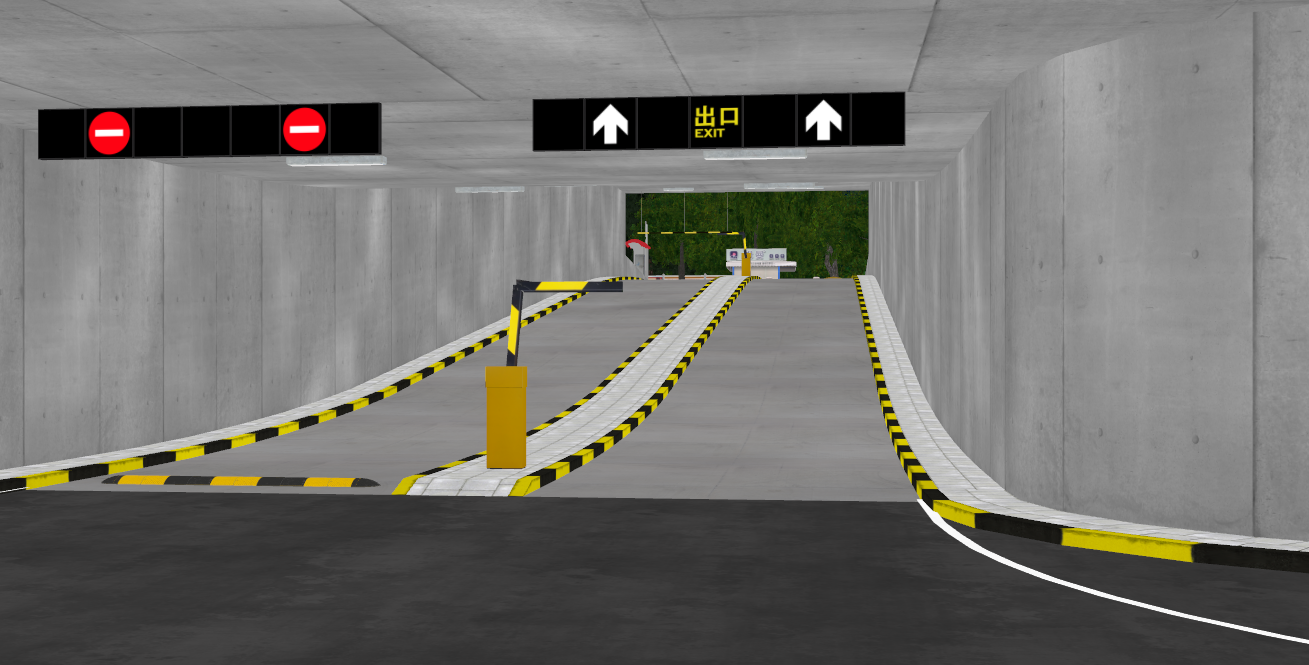

Underground parking garage on two levels. The garage can be entered via the two entries, one one-way ramp in the South, one two-way ramp in the center including an exit. All entries and exits have a open static knee-barrier and emissive signals. In total 716 Parking-spaces on two levels, along tree corridors: Technically the whole underground area is marked as tunnel with two different lighting settings: grounds and walls are set to lighting 100%, ceilings are set to lighting 80%. Tunnel is exported to OpenDRIVE. Level -1 is on -4 m elevation, Level -2 is on -8 m elevation.

Dimensions: 300 m x 500 m
Drive lanes: X: 0, Y: 2
Country: China
Character: Chinese city
Group: VT09-SecondaryRoad
RoadCourse: straight
Crossings:

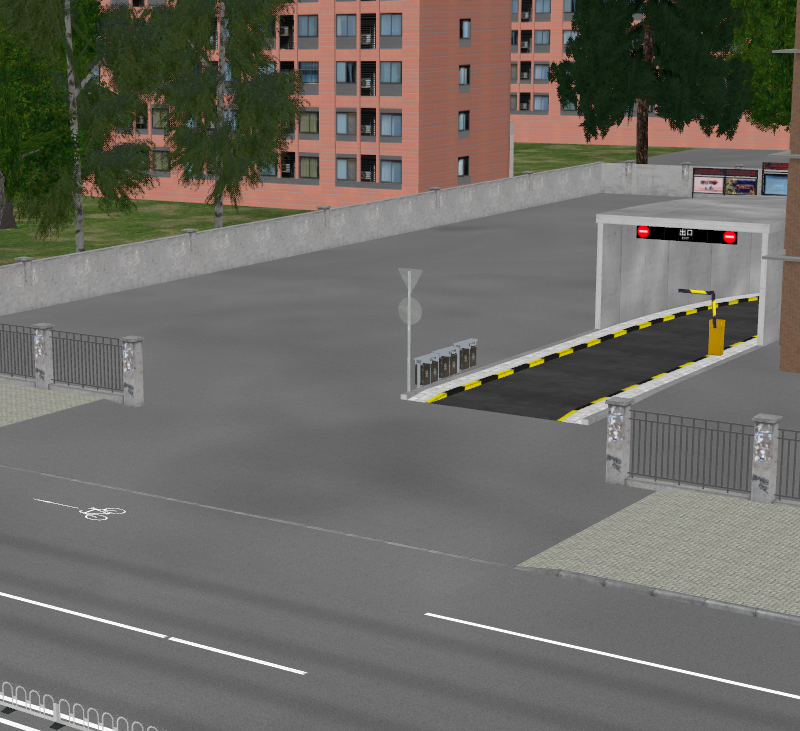

Yes, at the entries and exits of the garage

Parking Bays:

In total 716 in the underground garage

Specials:

Parking spaces have the model Rd_ParkingBox_600x260cm_90Deg_White_Reg86_01.flt exported to the OpenDRIVE.

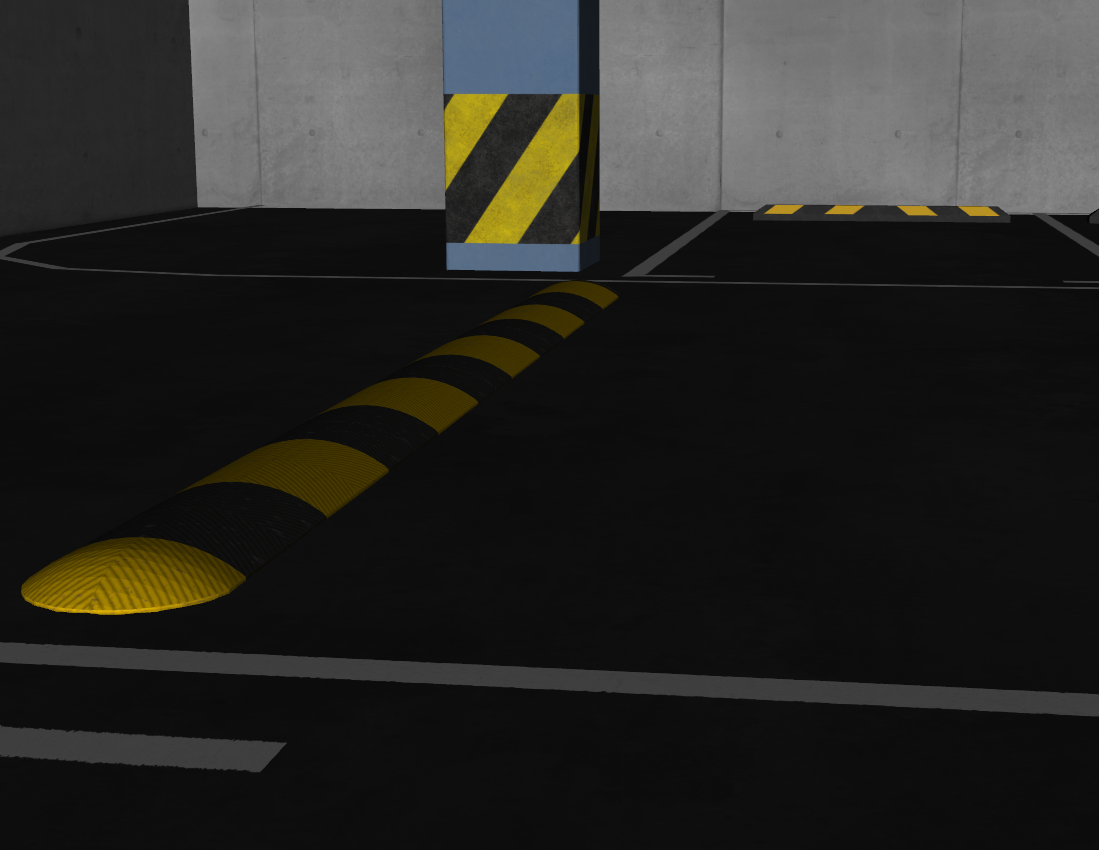

Wheel-Stoppers are placed as a CRG file 1 m before end of each ParkingBox, Model. Rd_WheelStopper_200x15x12cm_BlackYellow_01.flt.
Speedbumps are placed as a CRG file along at critical positions.

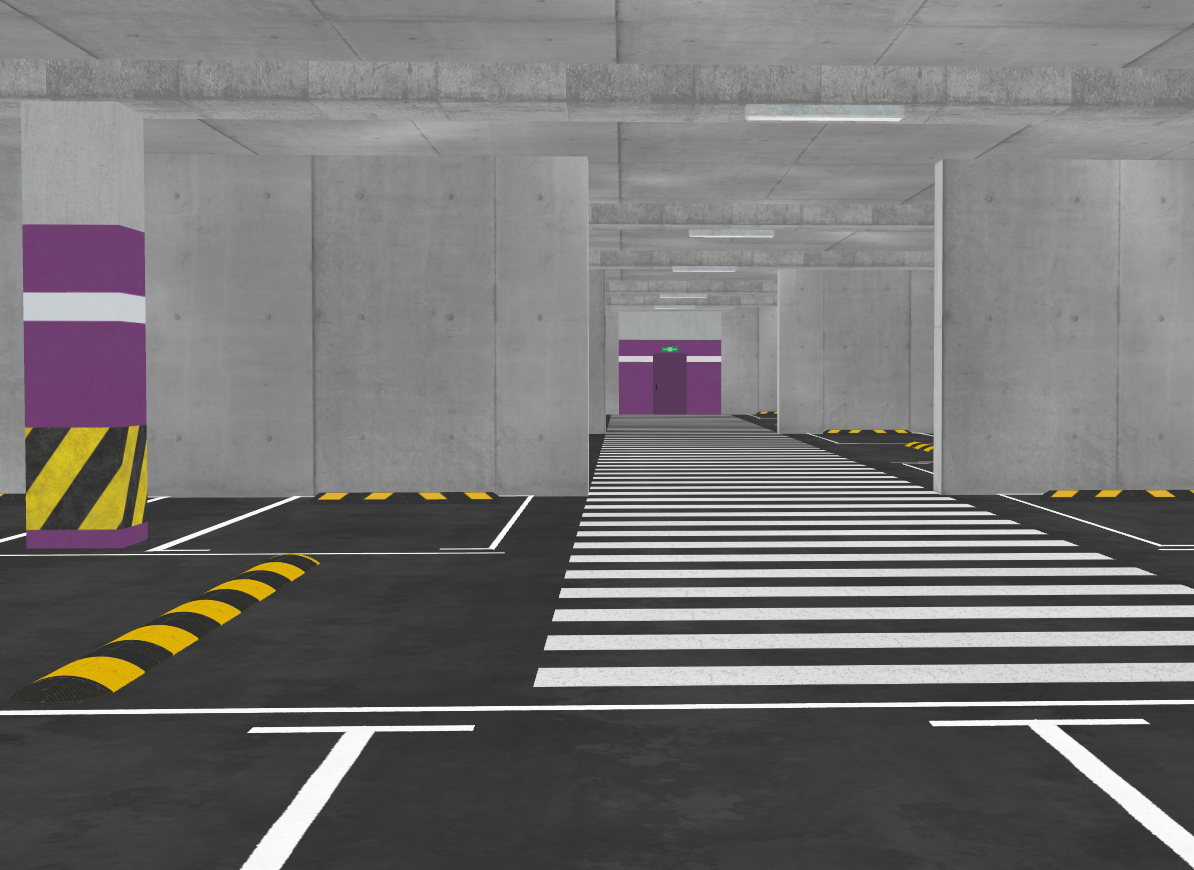

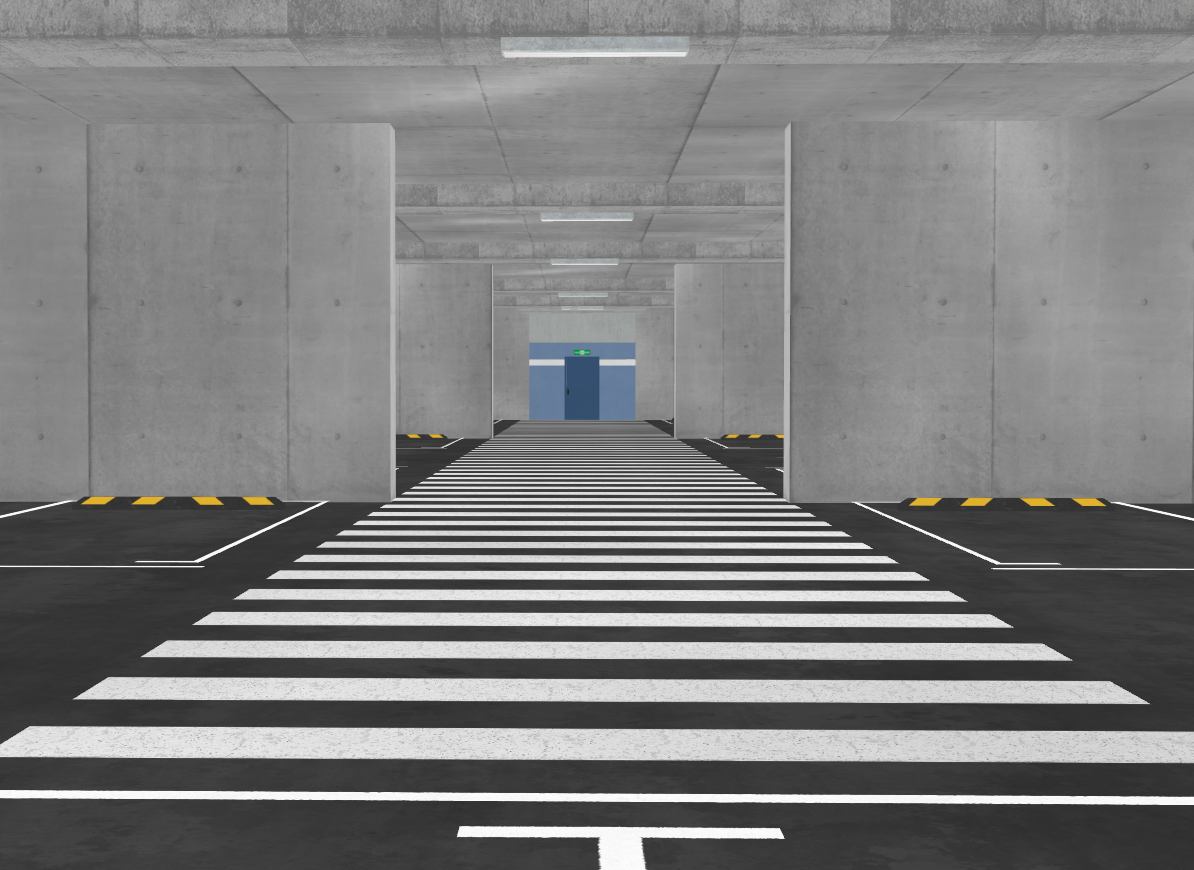

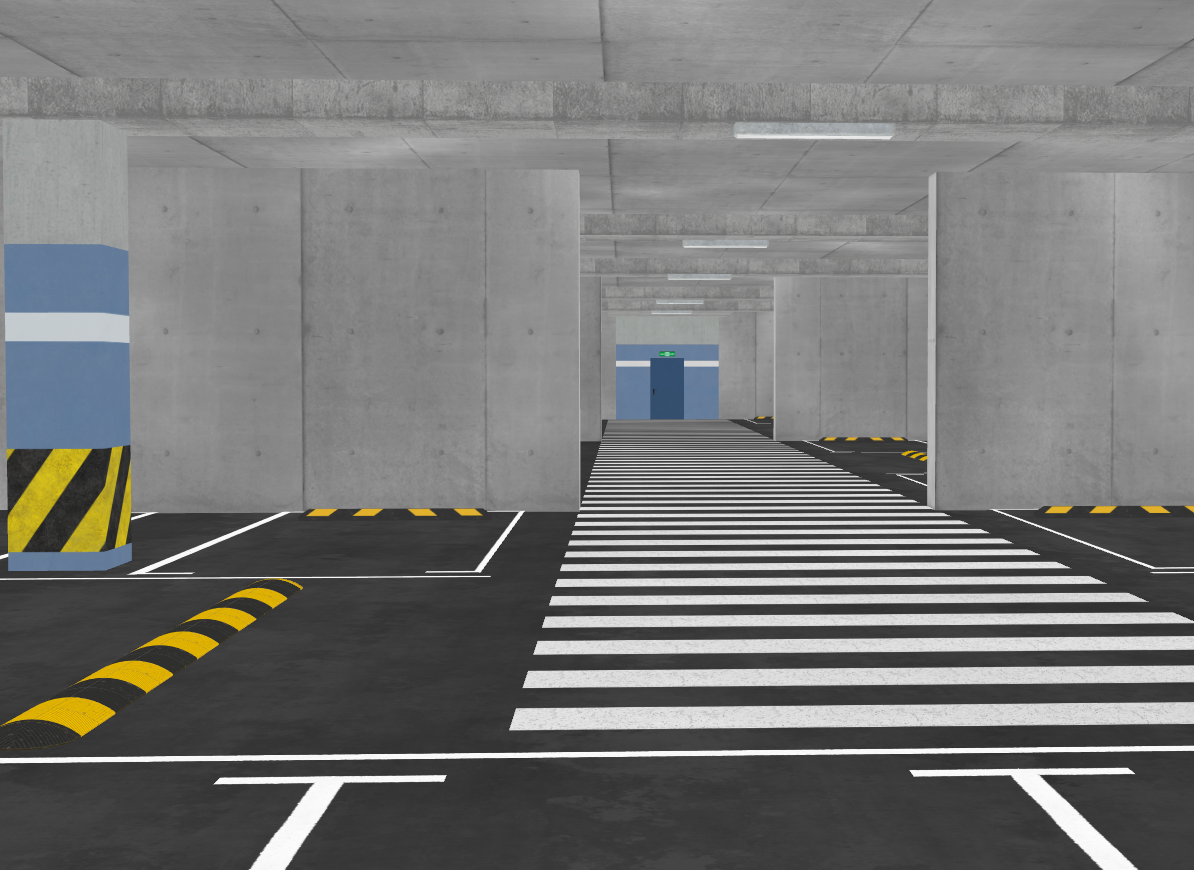

Zebra crosswalks are implemented twice on each level.

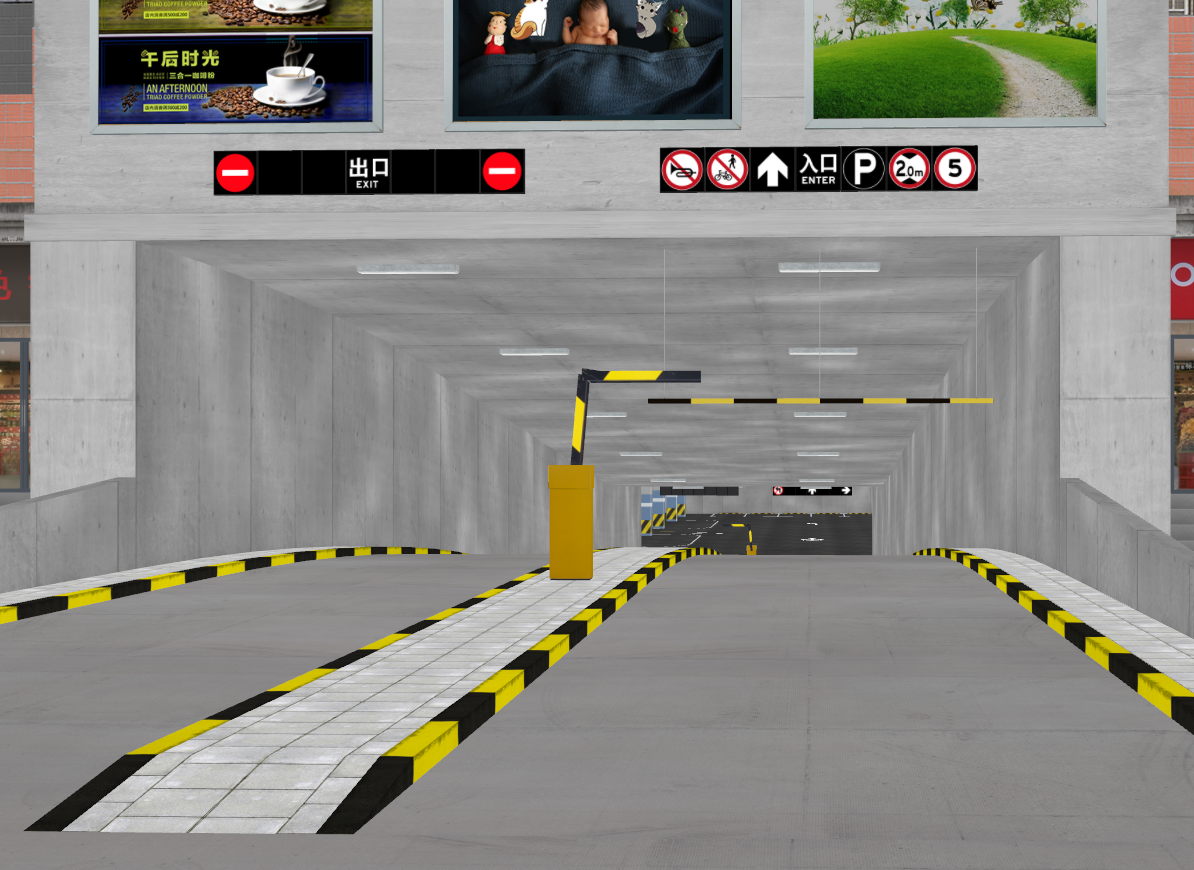

The vehicle height is limited to 2m. A Rd_HeightControlBarrier_400cm_01.flt is mounted at a 2m height.
