Town / VT09-C-RR004-3rd-T-Interchange

Properties:

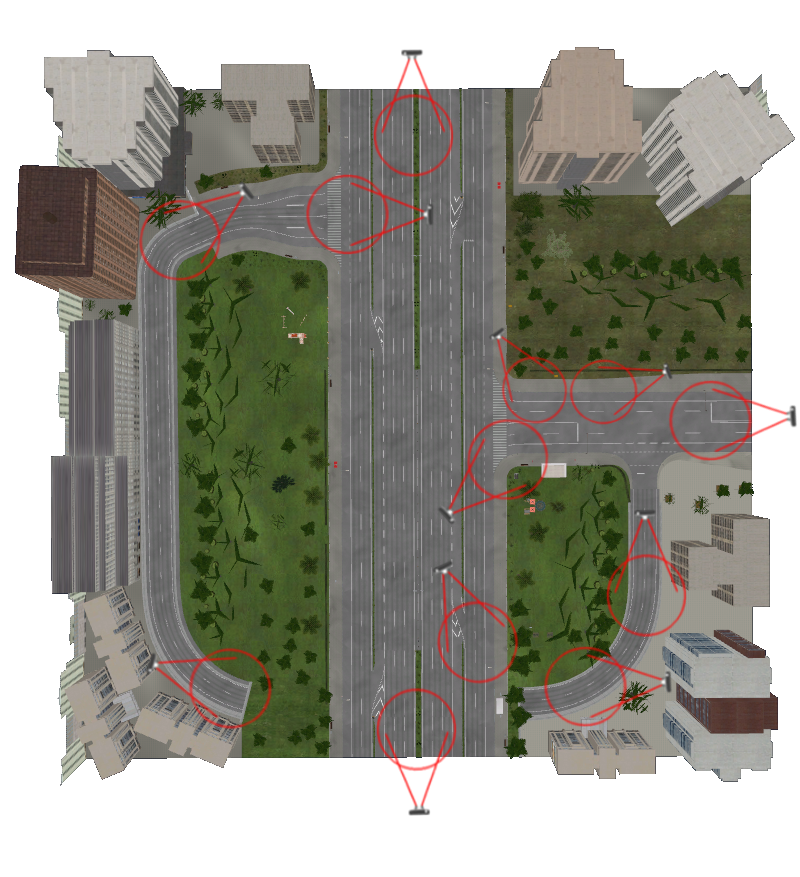

Ring road with 6 drive lanes in center separated from 2 drive lanes left and right next to the center road. Beside the Street are bike lanes and sidewalks placed. A crossing in the East of the Tile leads to a smaller road. From this Road leads another crossing to a curved streets that starts at the east of the tile, leads unter the big road to the West of the tile and ends there with a crossing in the big road.

1. Dimensions: 250 m x 250 m
2. Drive lanes: X: 1-2, Y: 3+2
3. Country: China
4. Character: Chinese city
5. Group: VT09-RingRoad
6. RoadCourse: straight, Hilly
7. Crossings:
• None
8. Parking Bays:
• None
9. Specials:
• 3rd Ring Road
• Bicycle lanes on both directions
• Busstop
• tunnel

Crossings

Parking Bays

Specials

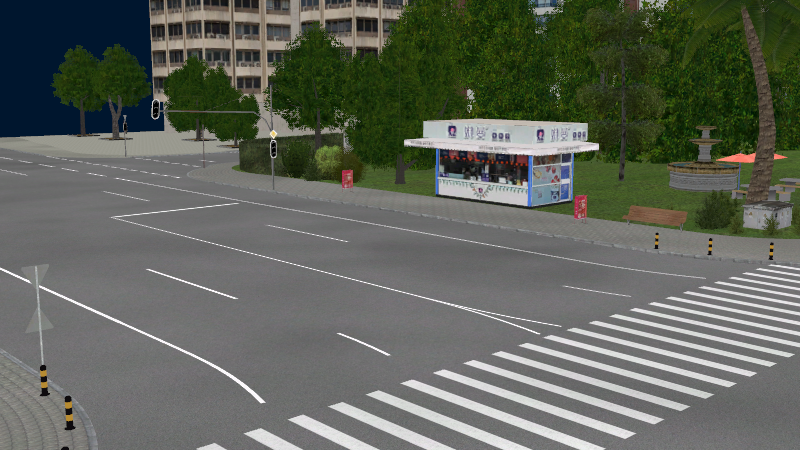

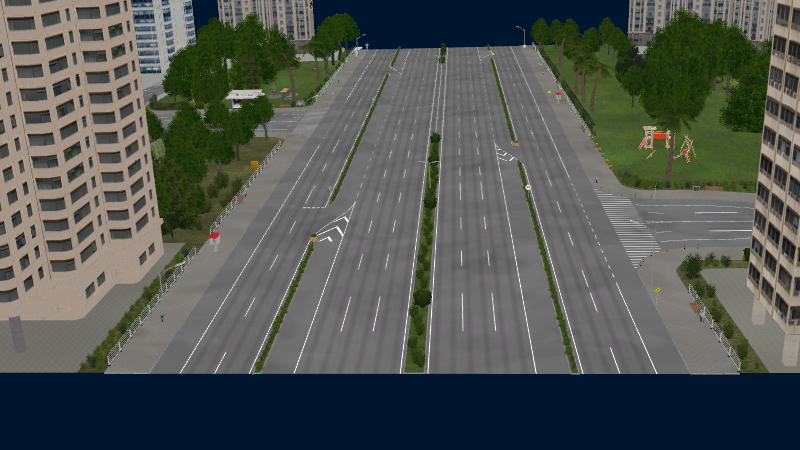

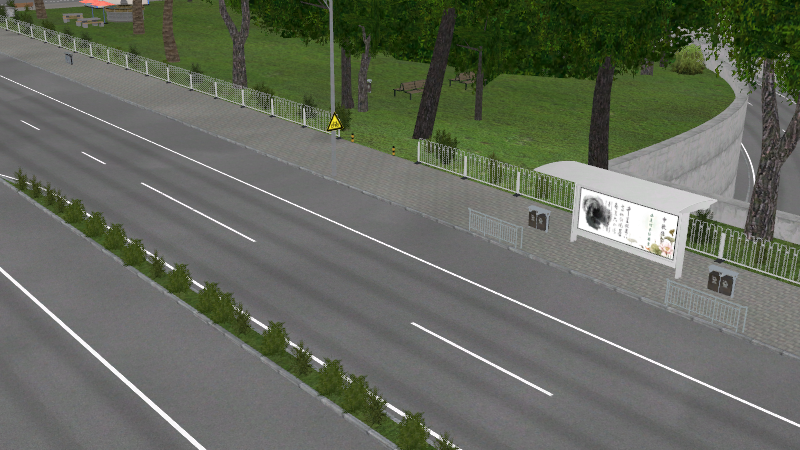

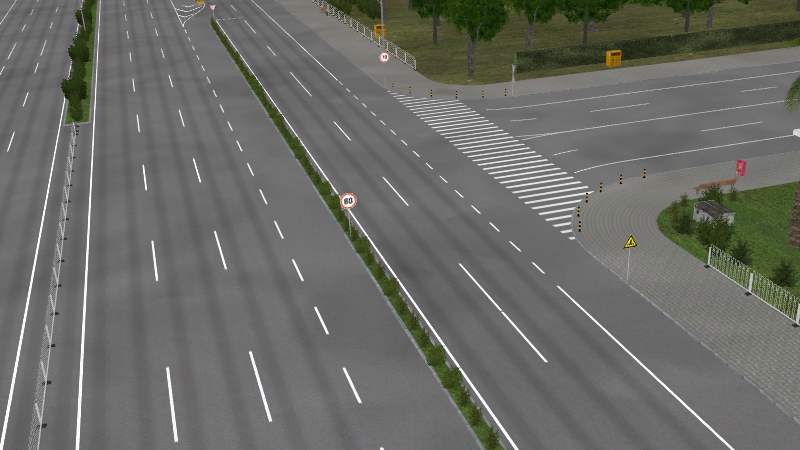

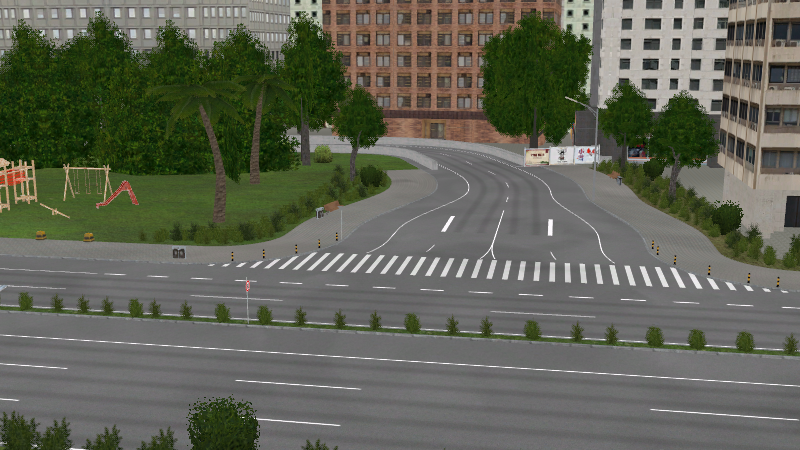

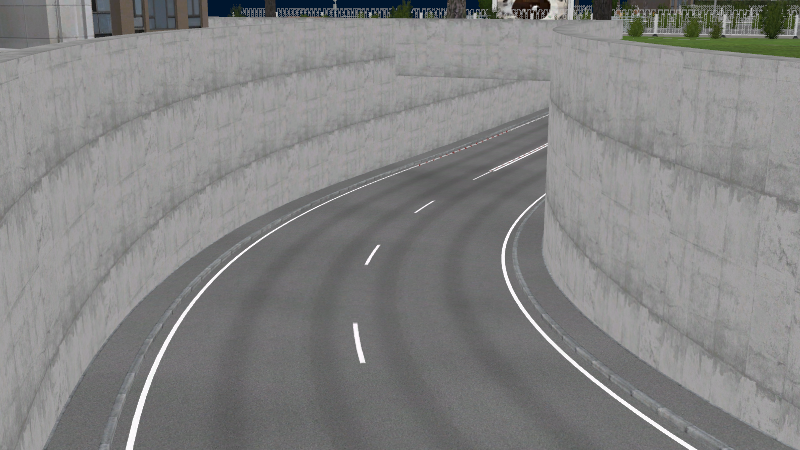

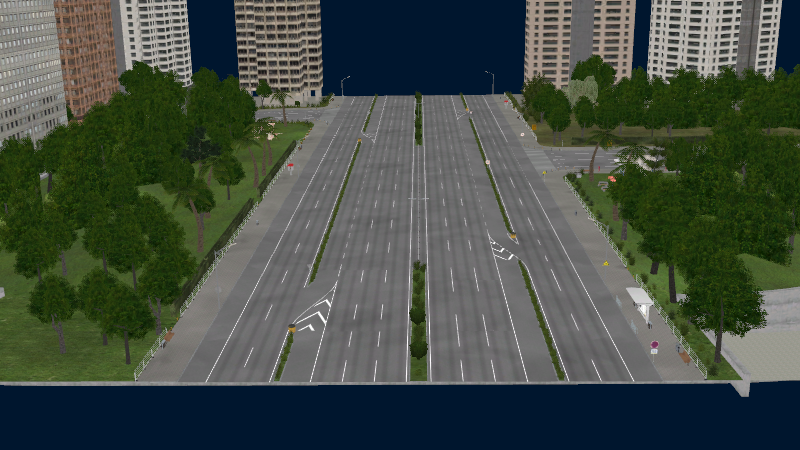

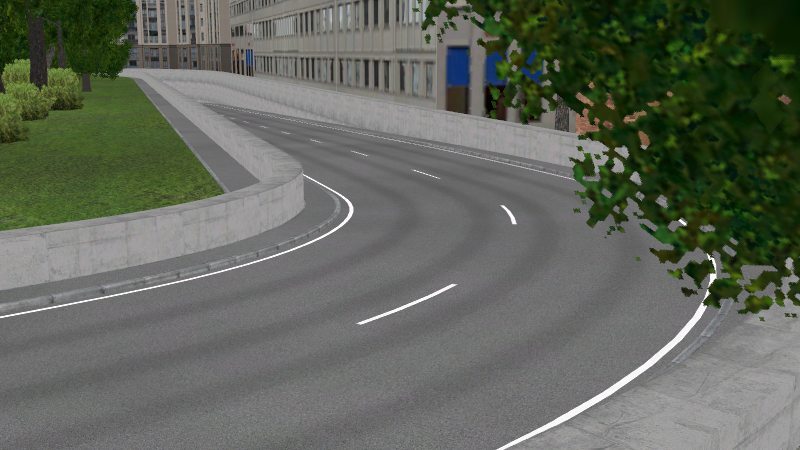

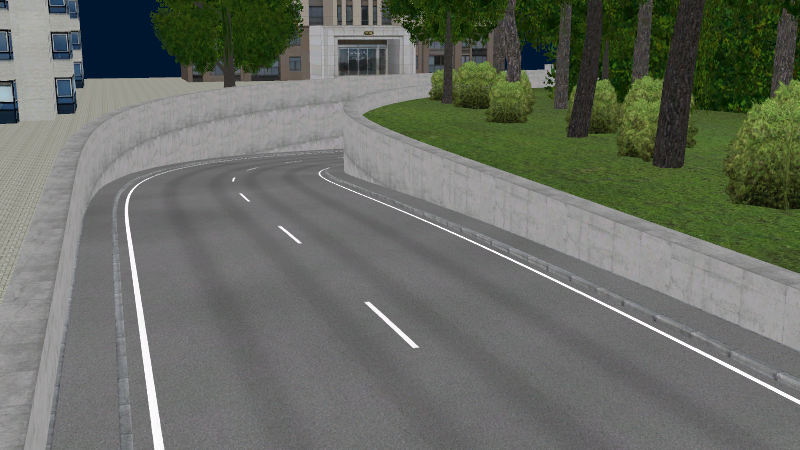

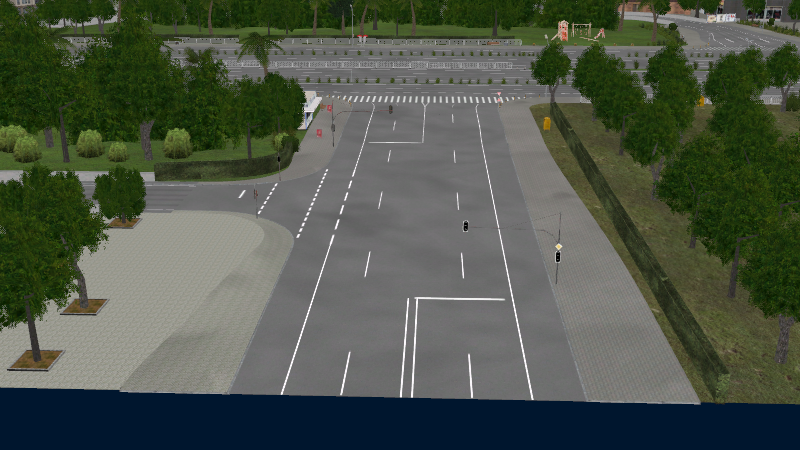

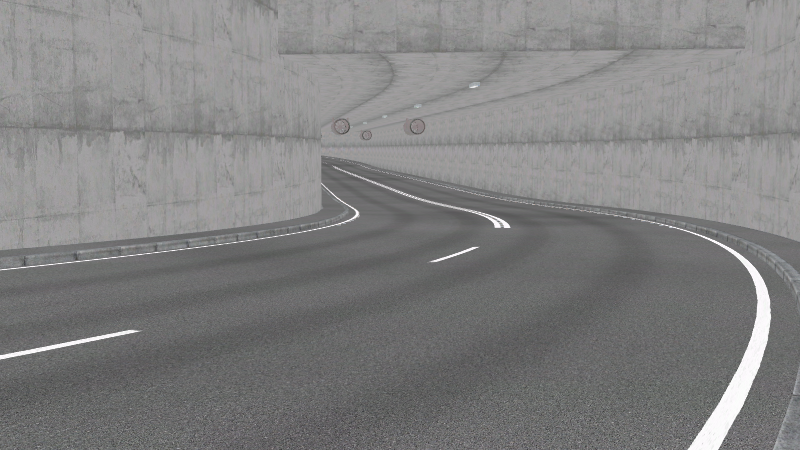

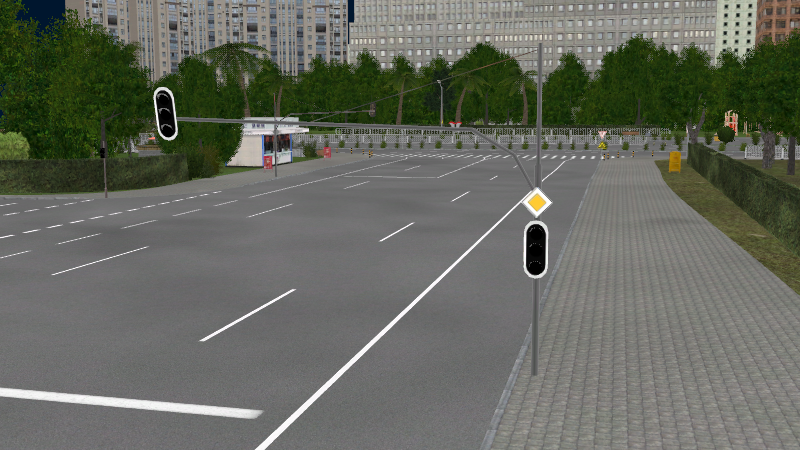

VT09-C-RR004-3rd-T-Interchange-BusstopSouth VT09-C-RR004-3rd-T-Interchange-CrossinNorth VT09-C-RR004-3rd-T-Interchange-CrosswalkCenter VT09-C-RR004-3rd-T-Interchange-DriveDownNorh VT09-C-RR004-3rd-T-Interchange-EdgeEast VT09-C-RR004-3rd-T-Interchange-EdgeNorth VT09-C-RR004-3rd-T-Interchange-EdgeSouth VT09-C-RR004-3rd-T-Interchange-SignallightsEast VT09-C-RR004-3rd-T-Interchange-SignallightstoEast VT09-C-RR004-3rd-T-Interchange-StreetSouthEast VT09-C-RR004-3rd-T-Interchange-tunnelSouthEast VT09-C-RR004-3rd-T-Interchange-tunnelWesttoEast
